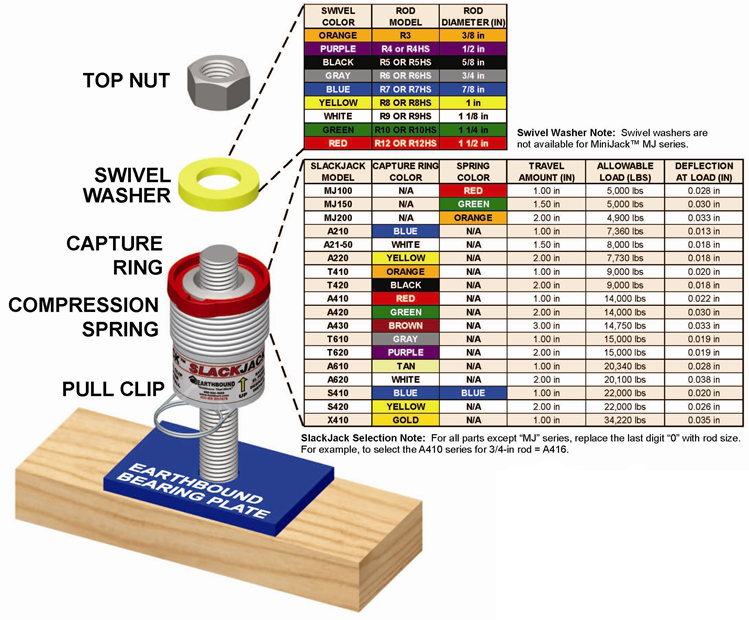

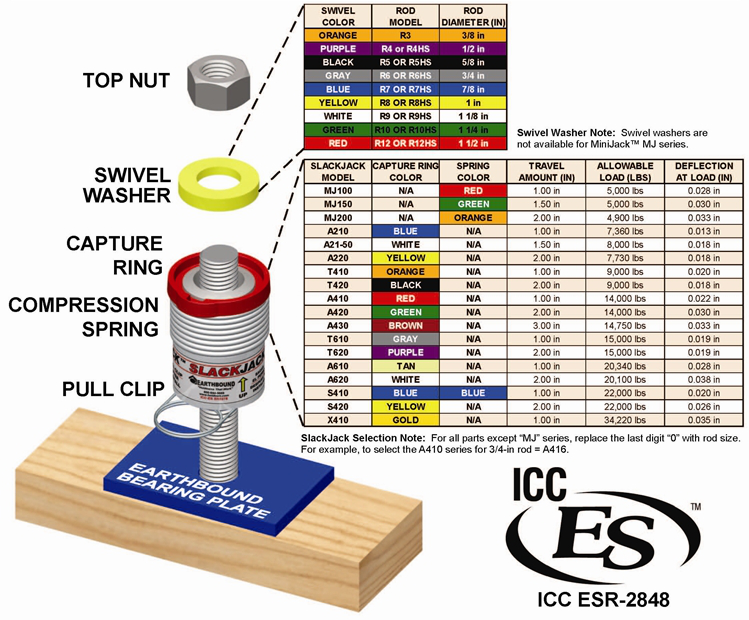

Slackjack® Shrinkage Compensation Device  | |
|
The Earthbound System now features the revolutionary Slackjack® shrinkage compensating fastener. | |
| Feature and Benefits: | |
| ● | Installs faster than other shrinkage devices. |
| ● | All component types successfully completed a 1,000 Hour Continuous Salt Spray test with every device still able to actuate! |
| ● | Testing for load values and corrosion resistance were all performed by accredited test labs. |
| ● | Self-aligning swivel feature for rods out of plumb. |
| ● | Each Slackjack® device can be reset in the field without tools. |
| ● | No lag screws to buy separately and install. |
| ● | No set screw to forget to remove. |
| ● | No baling wire to remove and tie strap to cut. |
| ● | Activation clip is specially designed to not be forgotten. |
| ● | Each Slackjack® provides constant tension to the rod. |
| ● | Color coded for threaded rod size and travel distance. |
| ● | Available in 1", 2" and 3" travel. |
| ● | Safety factor of three for load capacities up to 39,170 Lbs per AC316. Proof load of 1.1+ also verified per AC316. |
| ● | Design for Threaded rod sizes from 1/2” to 1-1/2”. |
| SLIDE | SPIN | PULL | FINISH! |
 |
 |
 |
 |
| Slide SlackJack® on top of color bearing plate. | Spin nut down hand tight. | Pull clip away from device. | Place clip on the rod above the device to show activation. |
